Description

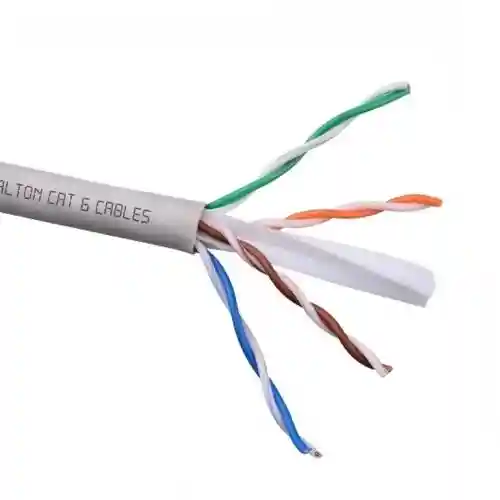

CONSTRUCTION
1. Conductor: Solid Plain annealed Copper to ASTM B3
2. Insulation: High Density Polyethylene (HDPE) to EN 50290-2-23
3. Star Separator:Polyethylene (PE)
4. Sheath: FR-PVC, Grade-TM51 to EN 50290-2-22
COLOUR
Insulated Core: W-Bl, W-Or, W-Br, W-Gr
Sheath : Grey, Sky-blue & Orange
Colour can be changed as per customer requirement.
| PHYSICAL DATA | |||||||||||
| Number of pair x Size |
Number & diameter of wire |
Approx. Core diameter |
Nominal thickness of sheath |
Approx. Overall diameter | Approx. weight of cable |
||||||
| no. x AWG | no./mm | mm | mm | mm | Kg/Km | ||||||
| 4x2x23 AWG | 1/0.57 | 1.0 | 0.7 | 6.50 | 37 | ||||||
| TECHNICAL DATA | |||||||||||
| Max. Conductor resistance |
Max. ring resistance |
Max. mutual capacitance |
Min. Insulation resistance | Standard impedance |
Min. bending radius |
||||||
| ohm/km | ohm/100m | pF/100m | M.ohm.km | ohm | mm | ||||||
| 74.74 | 14.5 | 48.0 | 5000 | 100 ±5 | 15 | ||||||
| TRANSMISSION SPECIFICATION | |||||||||||
| Frequency | Attenuation Minimum value of EN 50288-3-1 |
NEXT Minimum value of EN 50288-3-1 |
PS NEXT Minimum value of EN 50288-3-1 |
ELFEXT Minimum value of EN 50288-3-1 |
PS ELFEXT Minimum value of EN 50288-3-1 |
Return loss | |||||
| MHz | dB/100m | dB | dB | dB/100m | dB/100m | dB | |||||
| 1 | 2.10 | 66.00 | 64.00 | 66.00 | 64.00 | – | |||||
| 10 | 6.00 | 59.30 | 57.30 | 50.00 | 47.00 | 25.00 | |||||
| 16 | 7.60 | 56.20 | 54.20 | 45.90 | 43.00 | 25.00 | |||||
| 31.25 | 10.80 | 51.90 | 49.90 | 40.10 | 37.10 | 23.60 | |||||
| 62.5 | 15.50 | 47.40 | 45.40 | 34.10 | 31.10 | 21.50 | |||||
| 100 | 19.90 | 44.30 | 42.30 | 30.00 | 27.00 | 20.10 | |||||
| 155 | 25.30 | 41.40 | 39.40 | 26.20 | 23.20 | 18.80 | |||||
| 200 | 29.10 | 39.80 | 37.80 | 24.00 | 21.00 | 18.00 | |||||
| 250 | 33.00 | 38.30 | 36.30 | 22.00 | 19.00 | 17.30 | |||||
